Aquarium Test Kits & pH / pH Test Kits & Meters / Digital pH Pen ATC

Item # TS-PHP

Pocket Size pH Meter *** 2 x BATTERIES INCLUDED ***

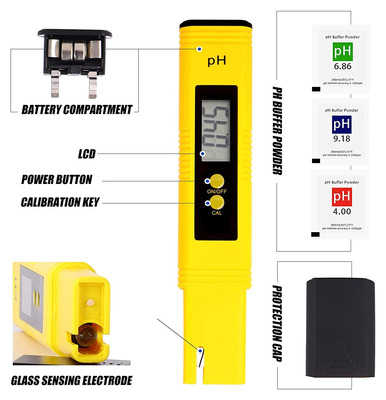

• Handy pocket size pen style pH meter.
• 2020 Updated Version
• Easy to use and calibrate.
• Measure Range: 0.00-14.00pH
• Resolution: 0.01pH
• Accuracy: ± 0.01pH
• Accuracy: Plus or minus 0.1 pH (@ 20degrees)
• Calibration: Two points automatic calibration
• Automatic Temperature Compensation: 0-60℃
• Operating Temperature: 0 to 50 degree Celsius.
• Power: 2 x 1.5volt  LR44 (A76) batteries.
• Ingress Rating: IP67 Waterproof.

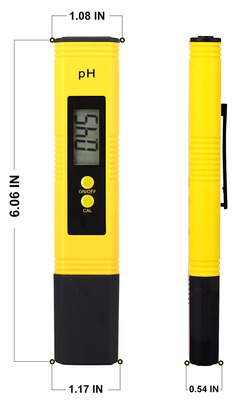

• Dimensions: 155mm x 31mm x 18mm, 50 grams.
• Made in China.

How to Use

1. Remove the protective cover from the meter and clean the electrode of the PH Meter with distilled water
2. Connect the switch located on the battery compartment
3. Just insert the Water test pen into the solution and stir the solution and wait just 2 min
4. Read the display

Calibration Tips

1. Dissolve PH buffer powder in 250ml of distilled water.
2. Turn on the PH meter and clean the electrode in distilled water, then immerse the electrode in the PH standard solution.
3. Press the' CAL' button, wait until the reading is the same as the PH value of buffer powder and steady.
4. Clean the electrode with distilled water and dry it.

AU$15.95
